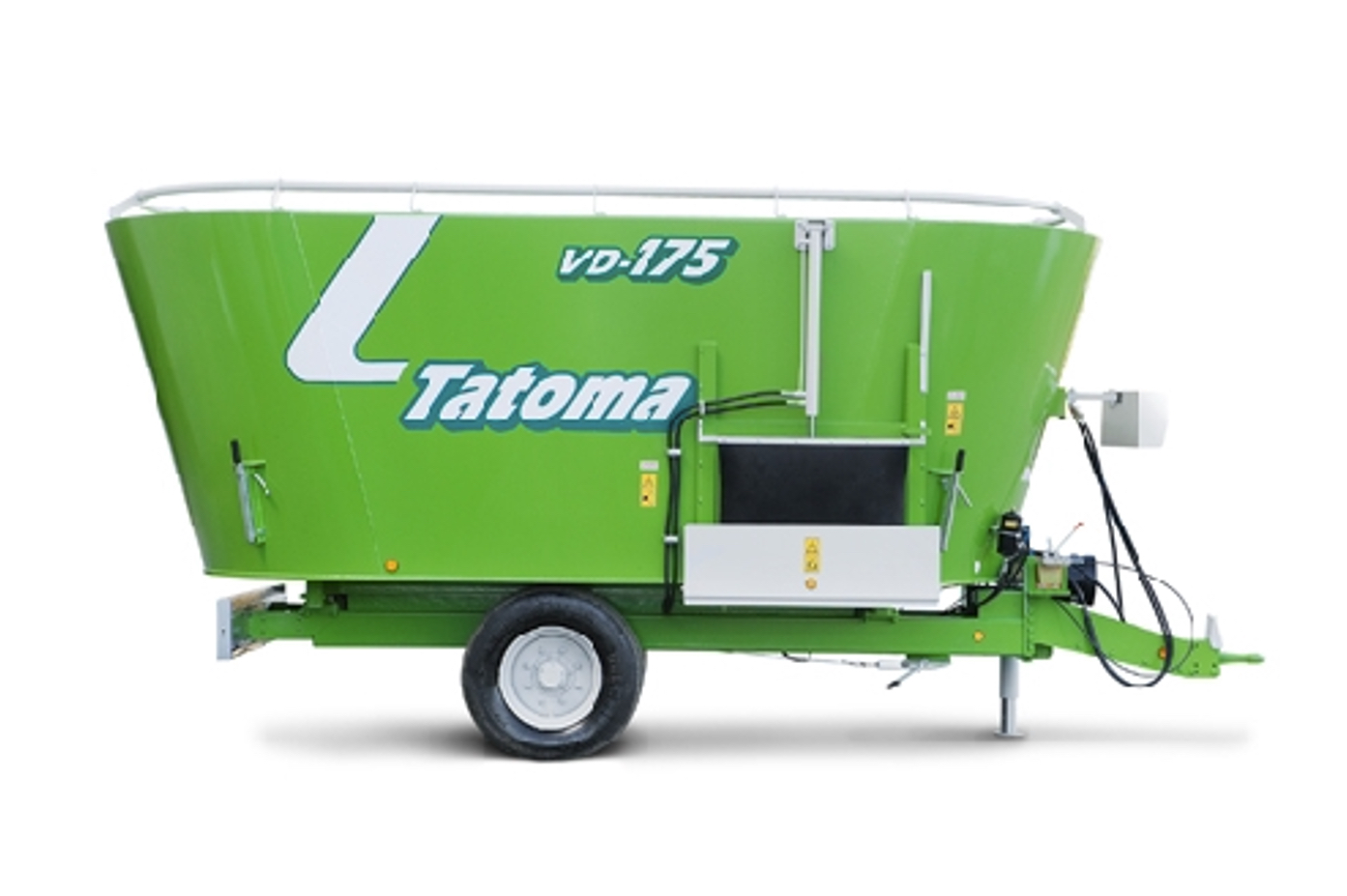

Mod. VD DL
Category: Pull-Type Mixers
Sub Category: Vertical Mixer / Two augers / One axle (VD series)
Details
The standard model includes:
- Vertical mixer with two augers
- Side discharge with slide
- Direct hoses to the tractor
- 4 weight cells
- 4 bale retainers
- 2 speed gearbox 120 hp
- Simple ladder
- Programmable scales
- Hydraulic front jack
- Bolted hitch, height adjustable
Description
Vertical mixer / Two augers / Side discharge door / Available capacities: 600 and 742 cu.ft.
- Pull-Type Mixers
- Horizontal Mixers (MT and MT-D series)
- Vertical Mixer / One auger (VN and V series)
- Vertical Mixer / Two augers / One axle (VD series)
- Vertical Mixer / Two Augers / Two axles (MVL-DD and MV-DD series)
- Vertical Mixer / Three augers (MVL-T and MV-T series)
- Vertical Mixer / Two Augers / One axle (MVL-D and MV-D series)
Specifications
Images
Links
| Mod.Cod. | VD-175 6175-1 | VD-215 6125-1 |
|---|---|---|
| Capacity | 600 ft317 m3 | 741 ft321 m3 |
| Tractor Req. | 85 HP63 Kw | 95 HP71 Kw |
| Front Jack | Hydraulic | Hydraulic |
| Controls | Direct Hoses | Direct Hoses |
| Unloading Type | Side | Side |
| Transimision System | ||
| Planetary | PGA 1602 | PGA 1602 |
| Two Speed Gearbox | Standard | Standard |
| Inputs |
|
|
| Measures | ||
| Length | 244 in620 cm | 247 in627 cm |
| Width | 96 in244 cm | 100 in254 cm |
| Height | 107 in272 cm | 116 in295 cm |
| Empty Weight | 12015 lbs5449 kgs | 12975 lbs5884 kgs |
| Tires | ||
| Tires | 445/50R22.5 | 445/50R22.5 |
| Num. of Axles | 1 | 1 |
