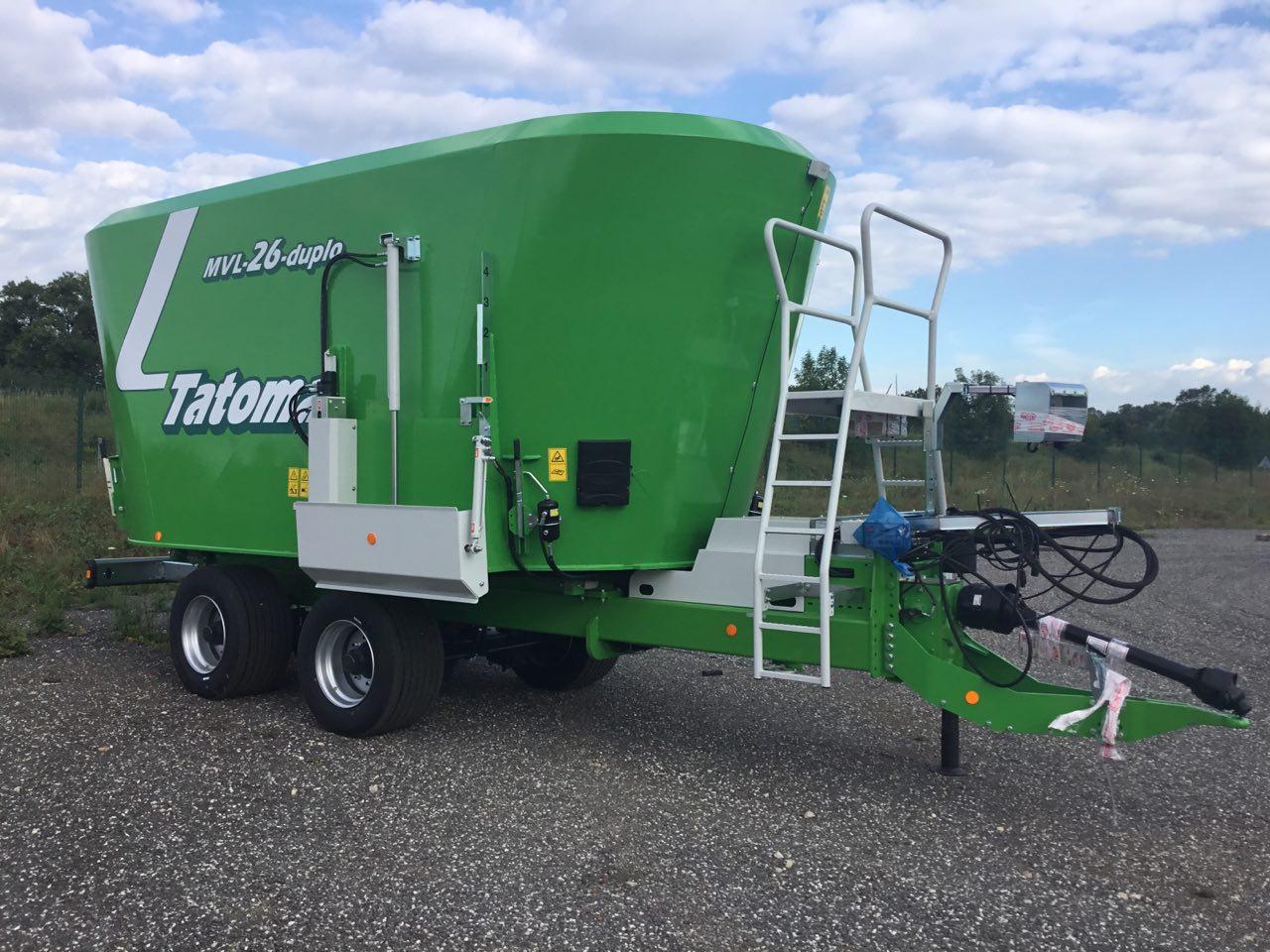

Mod MVL-D

Category: Pull-Type Mixers

Sub Category: Vertical Mixer / Two Augers / One axle (MVL-D and MV-D series)

Mod MVL-D

Details

The standard model includes:

  • Vertical mixer with two augers
  • Side discharge with folding chute
  • Direct hoses to the tractor hydraulic valves
  • 4 weight cells Ø54mm
  • 4 bale retainers
  • 2 speed gearbox 170 hp (MV14: 80 hp)
  • Platform with two sides ladder access
  • Programmable scales
  • Hydraulic front jack
  • Hydraulic and manual brakes
  • Bolted hitch, height adjustable
  • Straight PTO shaft
  • Independent chassis from the tube.

Description

Vertical mixer / Two augers / One axle / Side discharge door / Available capacities: 512, 565, 636, 706, and 777 cu.ft.

Also see:
Mod.Cod.MVL-14 DUPLO 7214-1MVL-16 DUPLO 7216-1MVL-18 DUPLO 7218-1MVL-20 DUPLO 7220-1MVL-22 DUPLO 7222-1
Capacity512 ft314 m3565 ft316 m3636 ft318 m3706 ft320 m3777 ft322 m3
Tractor Req.75 HP56 Kw80 HP60 Kw85 HP63 Kw90 HP67 Kw100 HP75 Kw
Front JackHydraulicHydraulicHydraulicHydraulicHydraulic
ControlsDirect HosesDirect HosesDirect HosesDirect HosesDirect Hoses
Unloading TypeSideSideSideSideSide
Transimision System
PlanetaryPGA-1602PGA1602PGA1602PGA1602PGA1602
Two Speed GearboxStandardStandardStandardStandardStandard
Inputs
  • 540 rpm
  • 540 rpm
  • 540 rpm
  • 540 rpm
  • 540 rpm
Measures
Length
289 in734 cm
289 in734 cm
295 in749 cm
297 in754 cm
299 in759 cm
Width
102 in259 cm
102 in259 cm
104 in264 cm
104 in264 cm
104 in264 cm
Height
99 in251 cm
105 in267 cm
105 in267 cm
112 in284 cm
118 in300 cm
Empty Weight
12786 lbs5799 kgs
13084 lbs5934 kgs
14241 lbs6459 kgs
14880 lbs6748 kgs
15476 lbs7019 kgs
Tires
Tires445/45R19,5445/45R19,5445/45R19,5445/45R19,5445/45R19,5
Num. of Axles11111
