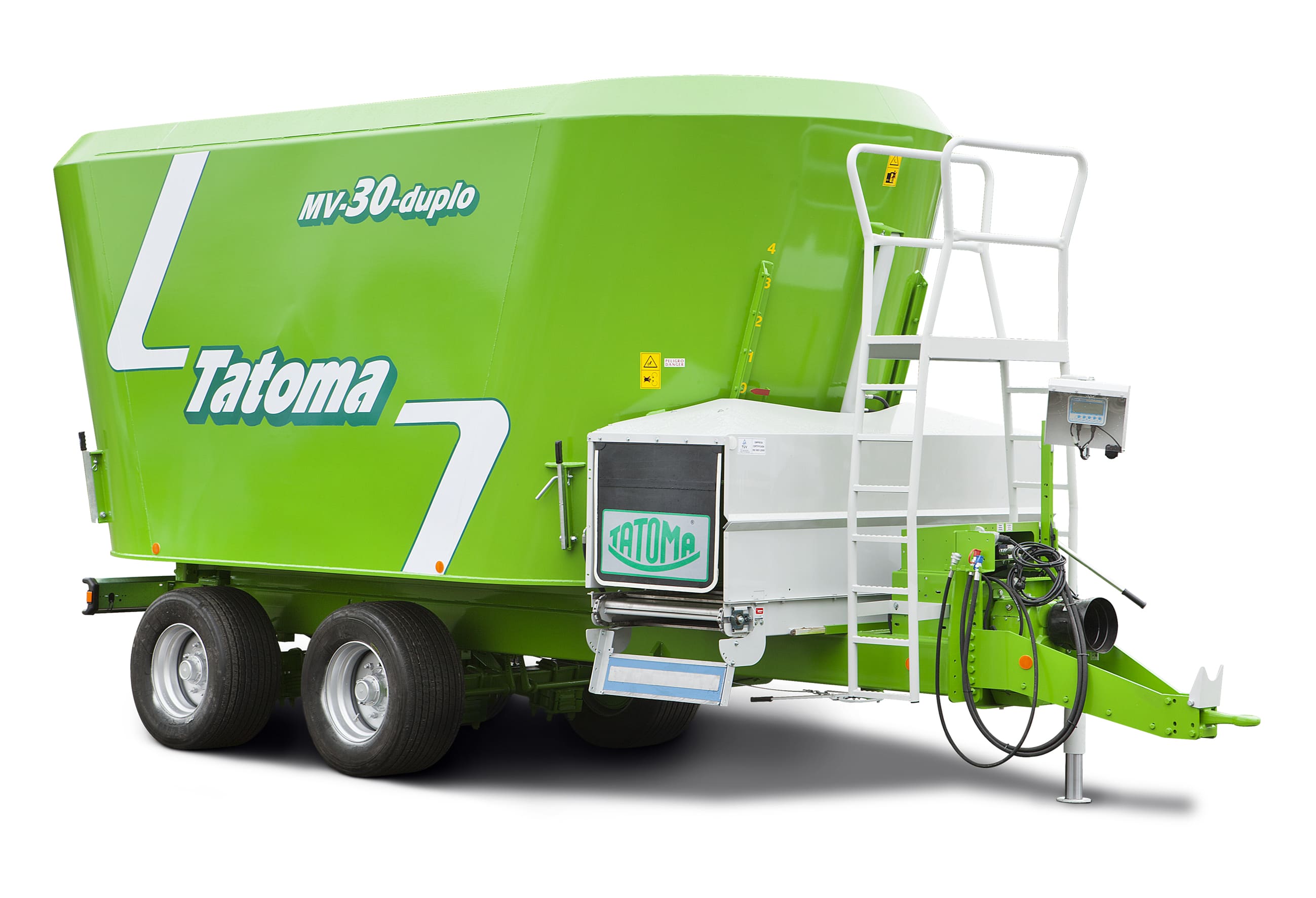

Mod. MV-D

Category: Pull-Type Mixers

Sub Category: Vertical Mixer / Two Augers / One axle (MVL-D and MV-D series)

Mod. MV-D

Details

The standard model includes:

  • Vertical mixer with two augers
  • Front discharge
  • Controls through hydraulic distributor and flex cables
  • 4 weight cells
  • 4 bale retainers
  • 2 speed gearbox 170 hp (MV-14D: 80 hp)
  • Platform with two sides ladders access
  • Programmable scales
  • Hydraulic front jack
  • Manual and hydraulic brakes
  • Bolted hitch, height adjustable

Description

Vertical mixer / Two augers / One axle / Front discharge conveyor / Available capacities: 512, 565, 636, 706, and 777 cu.ft.

Also see:
Mod.Cod.MV-14D DUPLO 6114-21MV16D DUPLO 6116-21MV-18D DUPLO 6118-21MV-20D DUPLO 6120-21MV-22D DUPLO 6122-21
Capacity512 ft314 m3565 ft316 m3636 ft318 m3706 ft320 m3777 ft322 m3
Tractor Req.75 HP56 Kw80 HP60 Kw85 HP63 Kw90 HP67 Kw100 HP75 Kw
Front JackHydraulicHydraulicHydraulicHydraulicHydraulic
ControlsHydraulic Dist + FlexHydraulic Dist + FlexHydraulic Dist + FlexHydraulic Dist + FlexHydraulic Dist + Flex
Unloading TypeFront ConveyorFront ConveyorFront ConveyorFront ConveyorFront Conveyor
Transimision System
PlanetaryPGA1602PGA1602PGA1602PGA1602PGA1602
Two Speed GearboxStandardStandardStandardStandardStandard
Inputs
  • 540 rpm
  • 540 rpm
  • 540 rpm
  • 540 rpm
  • 540 rpm
Measures
Length
289 in734 cm
289 in734 cm
302 in767 cm
304 in772 cm
306 in777 cm
Width
89 in226 cm
89 in226 cm
91 in231 cm
91 in231 cm
91 in231 cm
Height
100 in254 cm
105 in267 cm
105 in267 cm
112 in284 cm
118 in300 cm
Empty Weight
13151 lbs5964 kgs
13514 lbs6129 kgs
14705 lbs6669 kgs
15366 lbs6969 kgs
15983 lbs7249 kgs
Tires
Tires445/45R19,5445/45R19,5445/45R19,5445/45R19,5445/45R19,5
Num. of Axles11111
