MASTER MMS

Category: Self-proppelled Mixers

Sub Category: Horizontal Self-propelled mixer

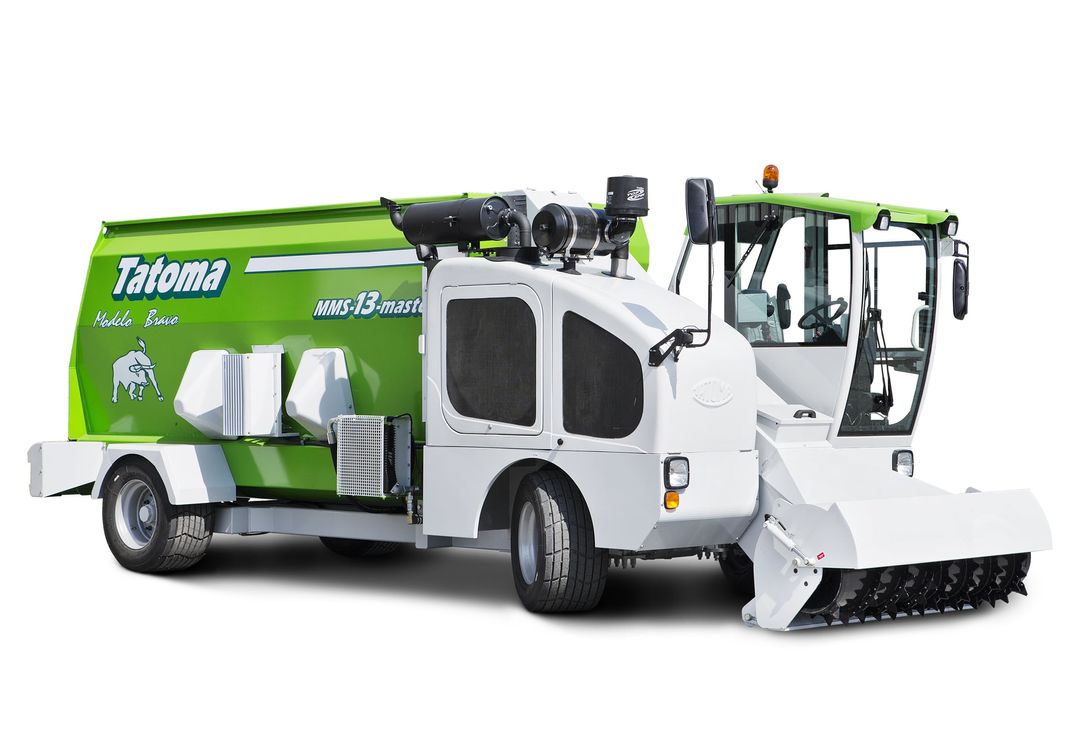

MASTER MMS

Details

Horizontal self propelled mixer, with one horizontal auger. Available in 353 cu.ft., 459 cu.ft., and 565 cu.ft.

Description

CAPACITIES AVAILABLE:

  • 353, 459 and 565 cu.ft.
  • 10, 13 and 16 m3

MIXER SYSTEM: Mixing system with a single heavy duty auger and interchangeable resistant knifes. Operated by a variable flow pump and piston engine coupled to the planetary at the rear. Adjustable mixing speed.

FRONT CUTTER AND LOADER: 130 hp, adjustable speed motor. Width 2000 mm / 79". Electrically driven lowering adjustment in the control panel, lowering cut-out by pressure switch depending on the working pressure of the cutter. Driven by a variable flow pump and orbital motors.

LOADING BELT: Made of polyethylene chain and cross bars

UNLOADING SYSTEM: 37" / 930 mm long side conveyor with hydraulic elevation.

WEIGHT SYSTEM: Programmable scales, 20 recipes x 20 ingredients

ENGINE

  • TIER 3 175 HP / IVECO
  • TIER 4A 170 HP / IVECO and 205 HP / IVECO

FUEL TANK: 42 US Gallon / 160 L

TRANSMISSION Hydrostatic closed circuit. Driven by a variable flow pump and piston motor.

AXLES: Two, front drive and steering. Four wheels 445/45R19.5

SUSPENSION: Front springs

STEERING: Hydraulic servo. Maximum turning angle of 40 °

BRAKES: Service, parking and emergency on rear axle

HYDRAULIC AND ELECTRICAL: Circuits designed to work in harsh environmental conditions. Compliant with European machines safety and electromagnetic incompatibility regulations. Located behind the cabin

CABIN: One-seater. Manufactured in steel with anti-corrosion chemical treatment. Optimal visibility of the environment (inward sloping windshield). Swing door. Safety glass

CONTROL SYSTEM: Multifunction joystick, buttons and indicators (reductor oil temperature, hydraulic oil temperature, mixer pressure, cutter pressure, hydraulic oil level, breakdown lights ...)

EQUIPMENT: Two spotlights front and two rear, air suspension seat, fire extinguisher, water heating, radio CD

SPEED 16 mph. / 25 Km/h

Also see:
Mod.Cod.MMS-10 7110-2MMS-13 7113-2MMS-16 7116-2
Capacity353 ft310 m3459 ft313 m3565 ft316 m3
Measures
Length
311 in790 cm
324 in823 cm
337 in856 cm
Width
98 in249 cm
98 in249 cm
98 in249 cm
Height
108 in274 cm
108 in274 cm
110 in279 cm
Empty Weight
21495 lbs9748 kgs
23457 lbs10638 kgs
23917 lbs10847 kgs

Product Composition
